MBRAUN offers its researchers a wide range of ready to use glove box workstations that can be equipped with a comprehensive set of optional features. University and Industrial labs use glove boxes for the research and development of emerging technologies including Lithium Batteries, Chemical, OLED / PLED and Welding.

LABmaster pro

  • Compact design with powerful integrated gas purifier unit (DP as option for 24/7 purification)
  • Available in 12 sizes (single sided or double sided)
  • Modular box design for easy extension
  • O2 and H2O < 1ppm
  • Closed loop circulation
  • Negative and positive pressure operation
  • Working gas: Argon oder  Nitrogen

Details

The LABmaster pro glove box workstation offers enhanced features and benefits to meet the demands of our clients. As the flagship model of MBRAUN glovebox workstations, the LABmaster pro can be easily configured with our entire line of specially designed process tools and can be fully integrated with other third party equipment.  The LABmaster pro has proven to be a superior glove box system in numerous research and manufacturing environments and is often utilized in emerging markets such as CHEMISTRY, BATTERY, OLED, PEROVSKITE.  With upgraded features and added benefits the LABmaster pro platform is your best choice to meet your growing application.

UNIlab pro

  • Modular box design for easy extension
  • Available in 12 sizes (single sided or double sided)
  • Powerful gas purifier unit (DP as option for 24/7 purification)
  • O2 and H2O < 1ppm
  • Closed loop circulation
  • Negative and positive pressure operation
  • Working gas: Argon oder  Nitrogen

Details

The MBRAUN UNIlab pro glovebox workstation has been designed to meet the specification of various applications and is considered to be the most universal glovebox platform. Compared to the LABstar workstation the UNIlab pro provides you and your team with added features including the enhanced UNIlab pro gas purification system. Other built-in features of the UNIlab pro Workstation are integrated high vacuum feedthroughs and a stainless-steel encapsulated blower. The UNIlab pro can operate with nitrogen or argon as working gas, which makes it ideal for applications like research or battery production. The enclosures are modular which gives you a wide choice of sizes (2, 3 or 4 gloves), single or double sided, and especially the possibility to assemble several enclosures together.

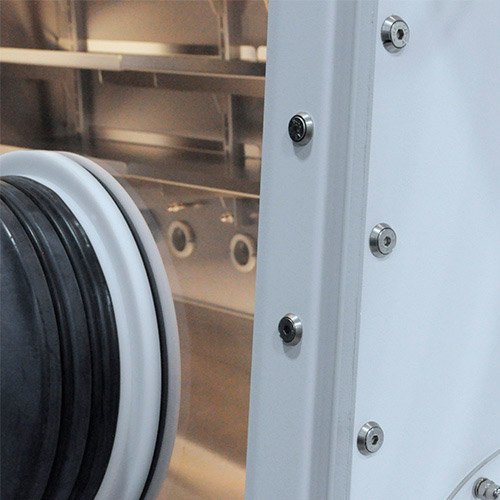

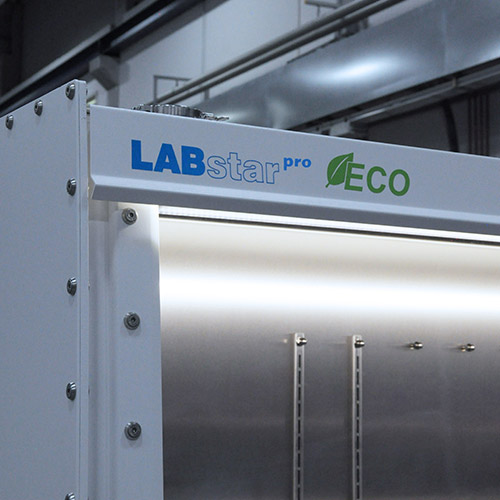

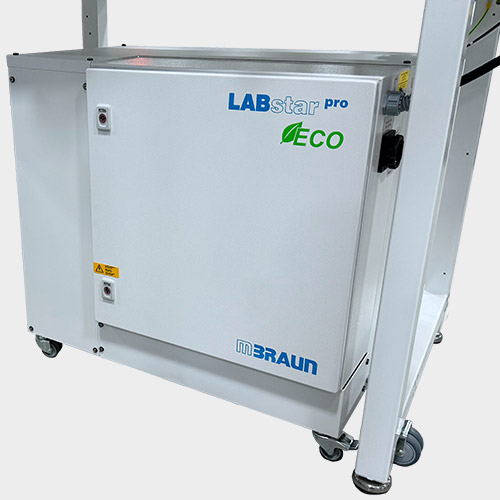

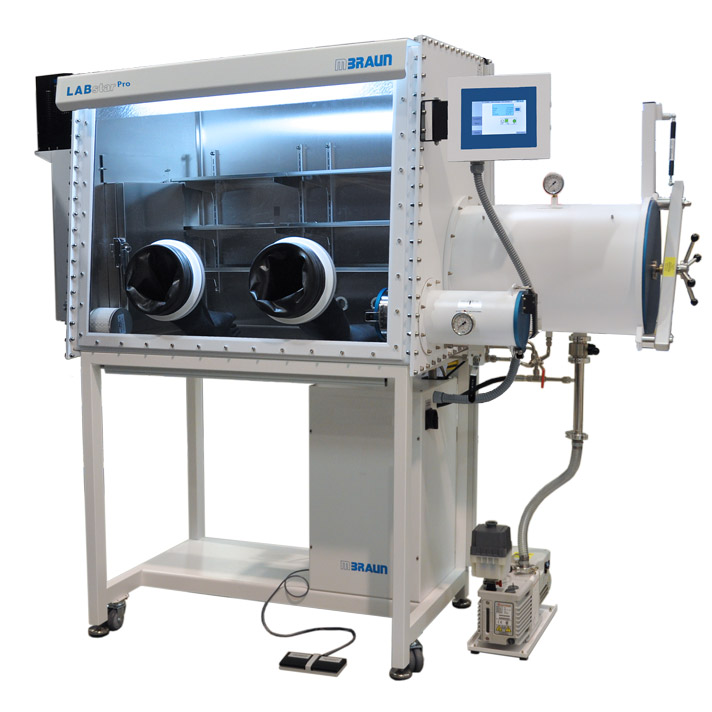

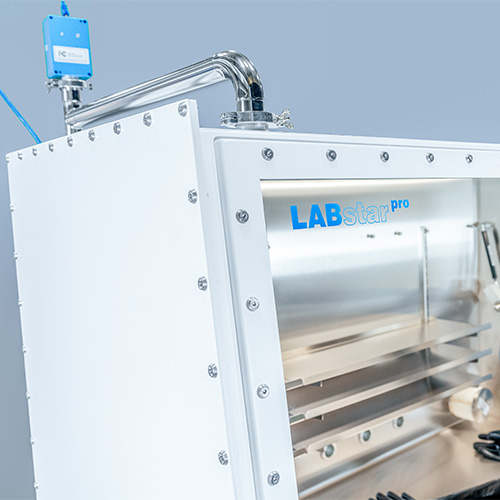

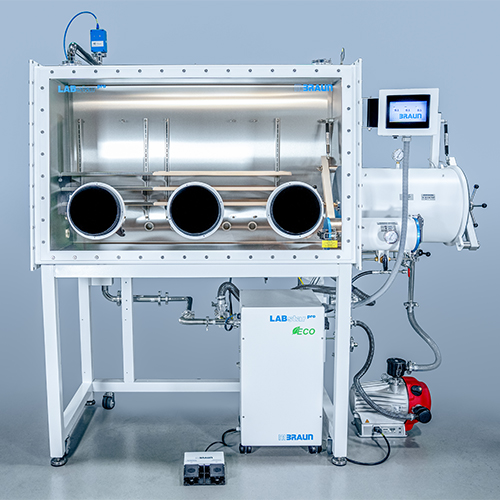

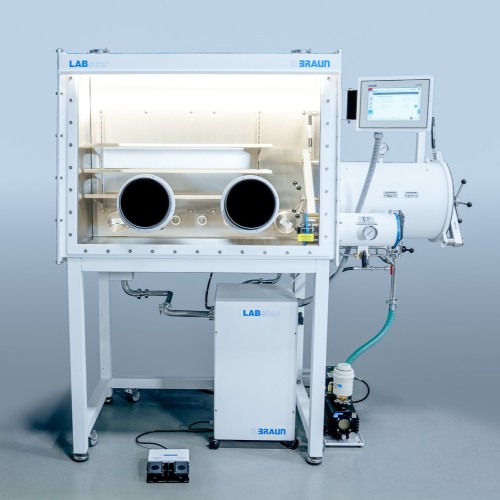

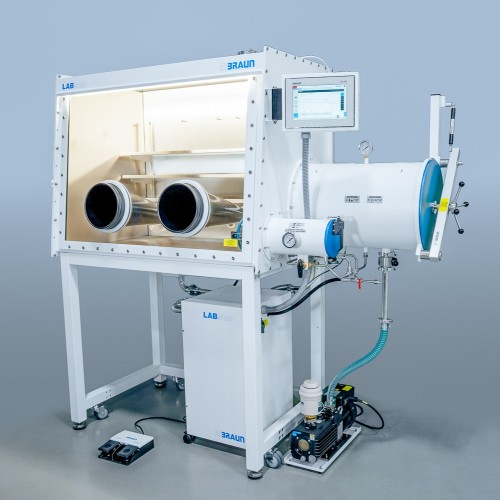

LABstar pro

  • Compact design with integrated gas purifier unit
  • Modular box design for easy extension
  • Available in 12 sizes (single sided or double sided)
  • O2 and H2O < 1ppm
  • Closed loop circulation
  • Negative and positive pressure operation
  • Working gas: Argon oder  Nitrogen

Details

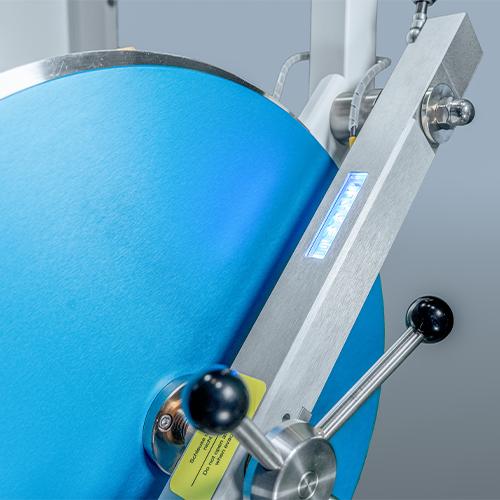

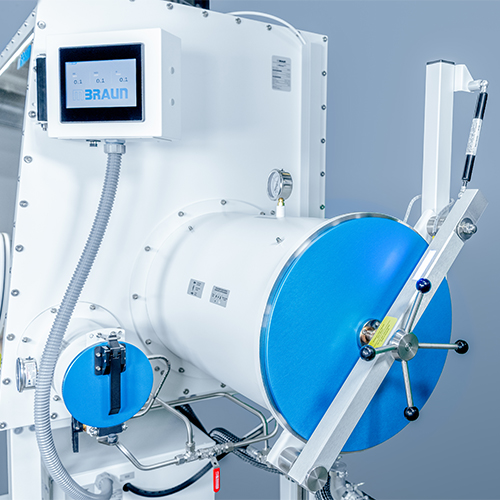

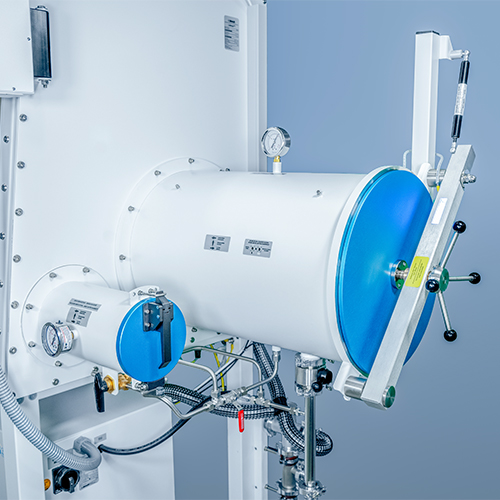

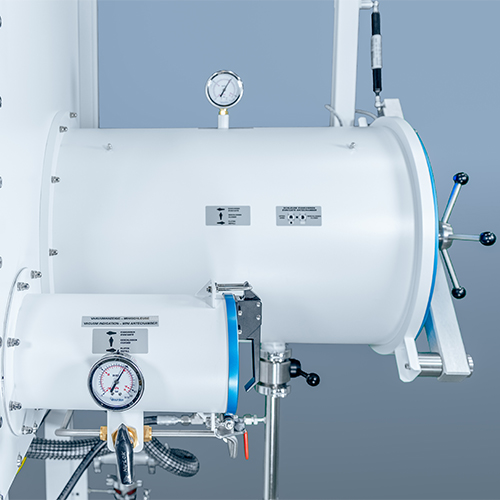

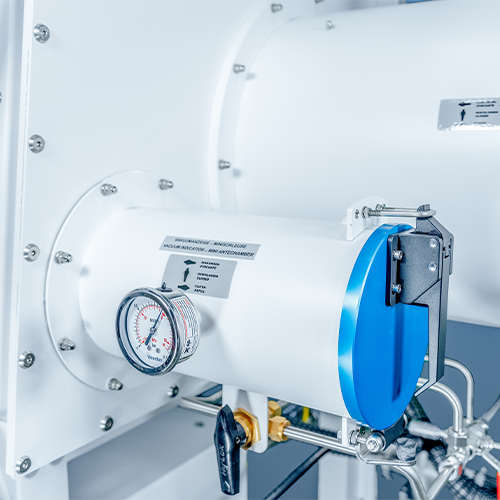

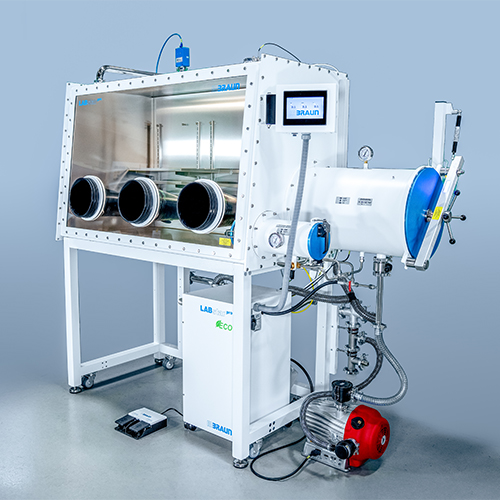

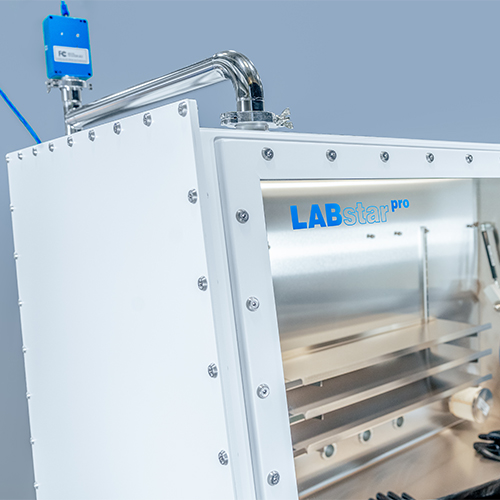

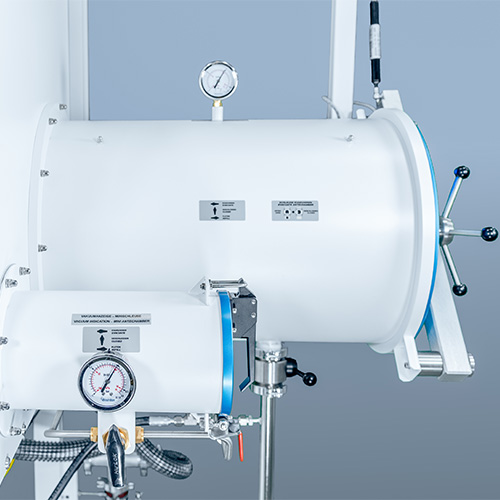

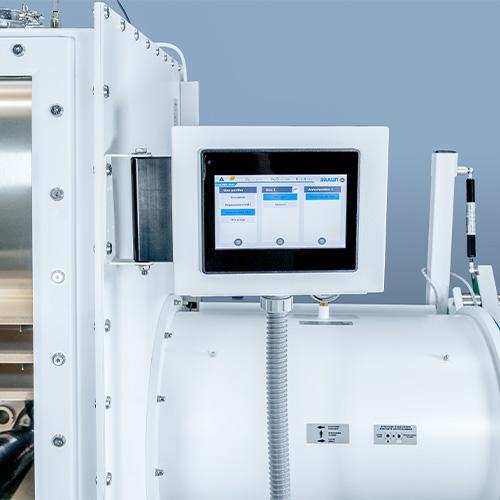

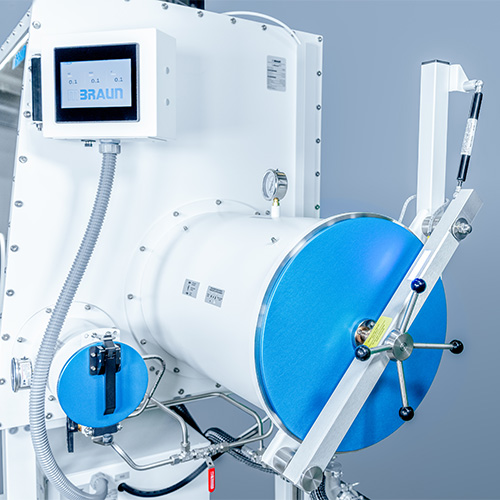

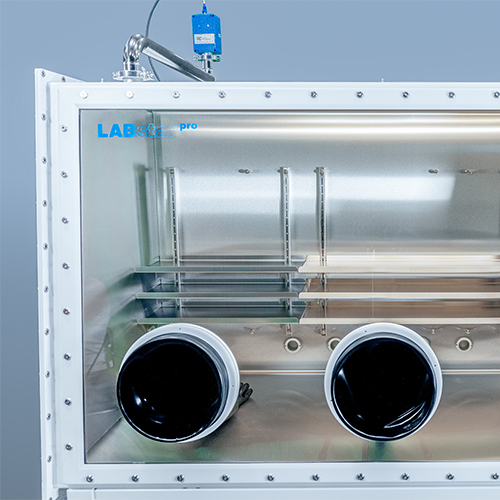

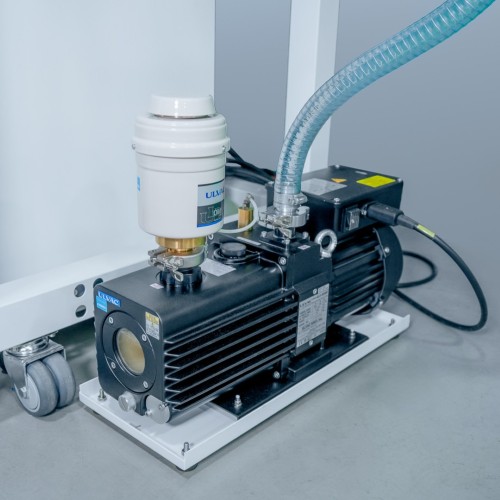

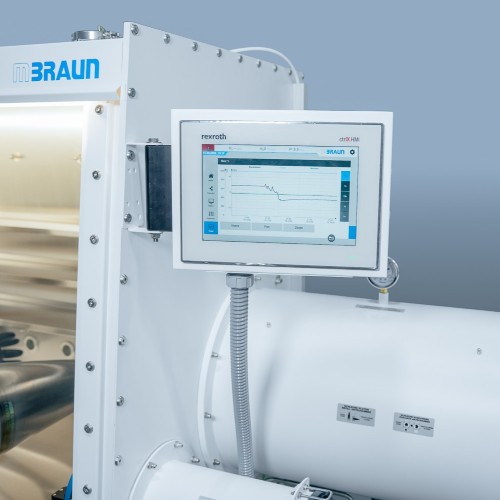

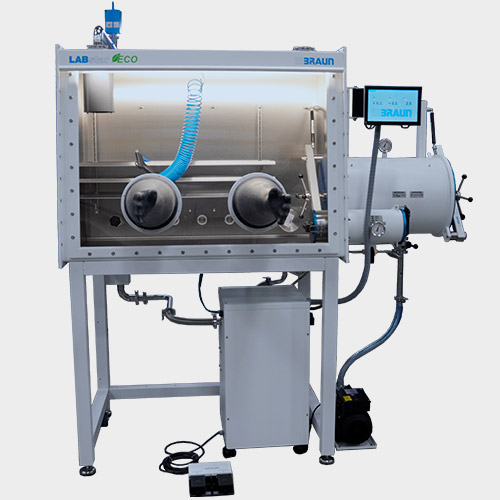

The LABstar pro glovebox workstation is a ready to operate high quality glovebox system that meets your specific application requirements for inert and clean environments. The system has been designed for customers needing an economic research and development tool to do vital experiments under clean atmospheres.  Standard features of this system include a large main antechamber, a rotary vane vacuum pump and the MBRAUN programmable logic controller (PLC). The standard LABstar package comprises a single column inert gas purification system (fully automatic and regenerable) that purifies the glovebox atmosphere to levels of less than 1 ppm oxygen and moisture. This system can be operated with Argon or Nitrogen gas as working gas. As a matter of course the system is made available in full stainless steel piping. The enclosure is modular to extend easily  the system.

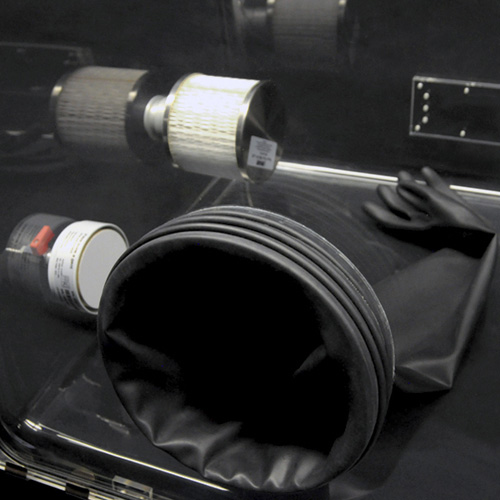

ISO-PRO-NANO

  • Operator protection while working with nanoparticles
  • Glovebox operating in under pressure mode
  • Gas inlet and outlet with HEPA-Filters
  • Automatic generation of airflow in case of leak to guaranty the under pressure

Details

The ISO-Pro-Nano glovebox with integrated blower is designed for operator protection while working with nanoparticles. It is operated in relative negative pressure to the environment (-200 Pa). The operator safety is guaranteed by the high leak tightness of < 1 vol%/h and the automatic (under)pressure control. In case of a leak (e.g., the breakdown of a glove) the blower generates a permanent inward gas flow with a velocity > 0.5 m/s to prevent the diffusion of box atmosphere into the surroundings. Many options are available to enrich the basic version such as with HEPA H 14 filters, front hinged window, inert gas purge operation, round/rectangular transfer chamber, push-push filter, round antechamber and its filtration, overpressure valve.

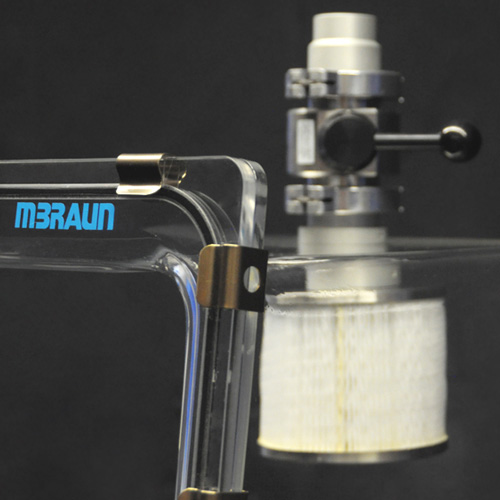

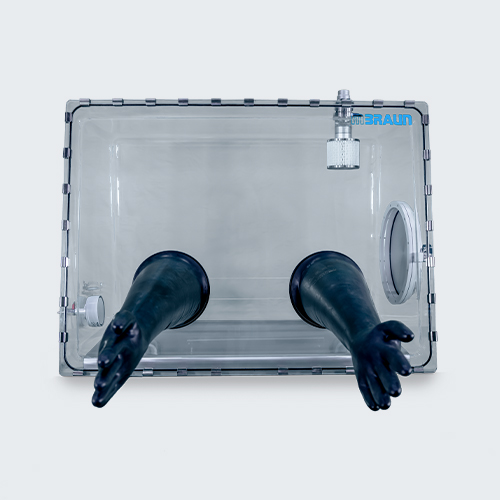

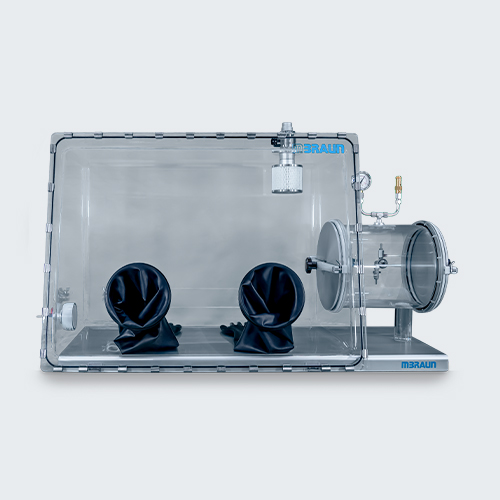

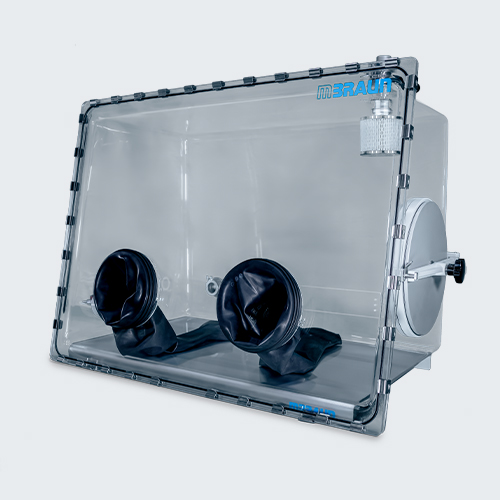

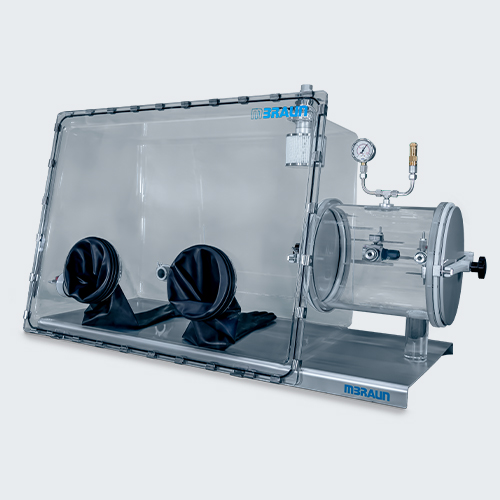

Acryl-Glovebox

  • Cost-effective solution for inert applications and/or user protection
  • Thick, clear and durable acrylic box body for optimum visibility
  • Purge glovebox

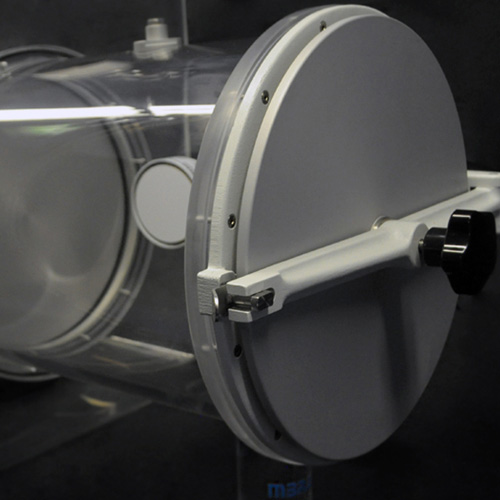

  • Standard pre-defined configurations like antechamber (purge or vacuum)
  • Working gas: Argon oder  Nitrogen

Details

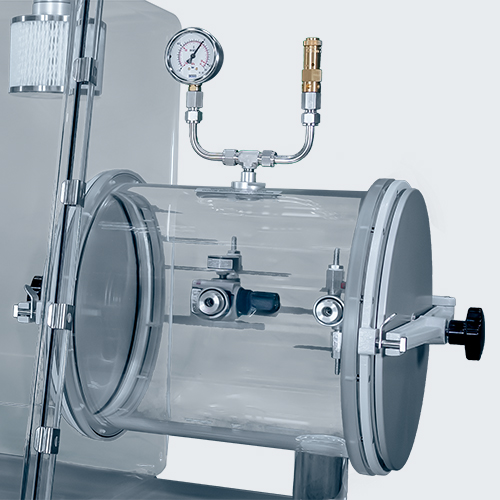

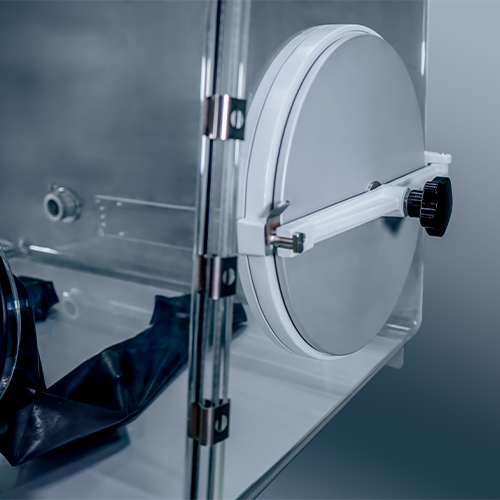

The MBRAUN Acrylic Glovebox Workstation offers a cost-effective, mobile solution for inert atmosphere applications. A thick, clear, and durable acrylic shell allows optimum visibility and remains impermeable to ambient air. Standard Neoprene gloves provide excellent resistance to abrasion and chemicals. The Acrylic Glovebox Workstation  can be configured to meet your project specifications and/or can simply be chosen from a variety of standard pre-defined configurations.

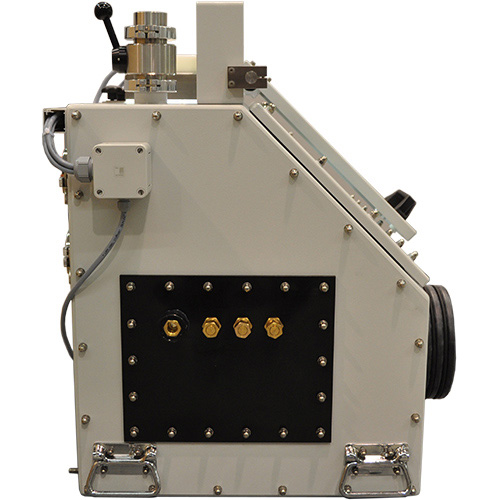

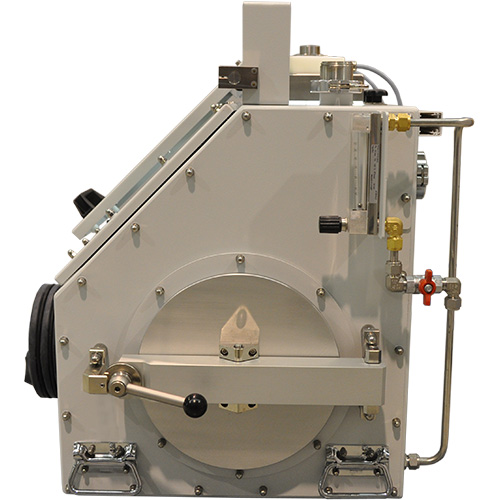

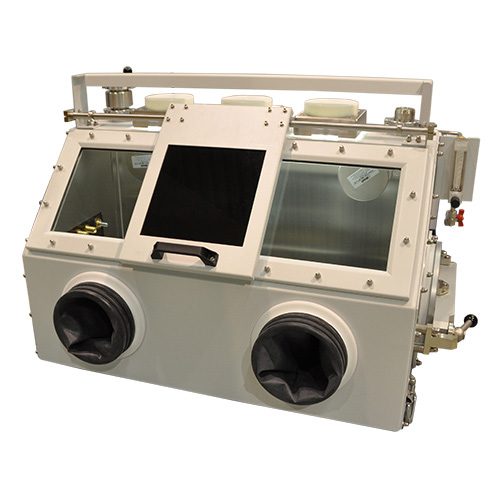

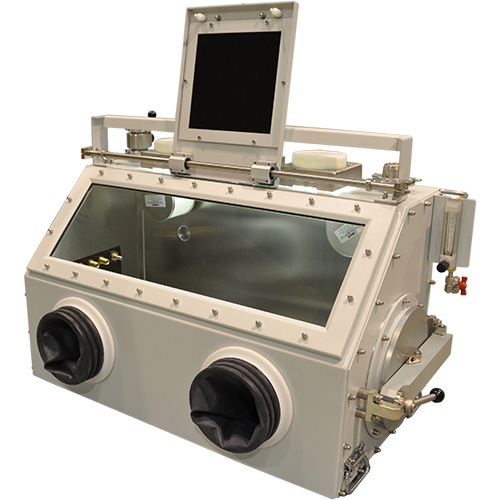

MB TIG 1010

  • TIG welding in pure argon
  •  No additional gas protection necessary
  •  Simple welding of complicated structures
  •  Low gas consumption
  •  Ready for welding within 10 ppm oxygen in about 10 minutes
  •  Easy manual operation
  •  Bench top system
  •  Robust and sturdy construction for every day use
  •  Mobile, can be carried to different work places
  •  Side door ø250 mm

Details

The MB-TIG-1010 bench top glove box platform is designed as a complete welding enclosure workstation with the capability to add gas purification systems and purge style antechambers. Operation enables you to easily load welding material into the box with the ability to purge with working gas (Nitrogen or Argon). Flow rate monitors, built in eye shields, and electrical connection board offers both safety and easy working power inside the box for all your welding tools. The MB-TIG-1010 is MBRAUN's recommended choice in small material welding under clean environments.

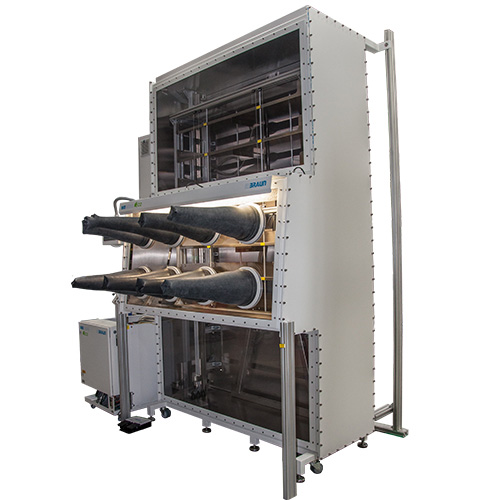

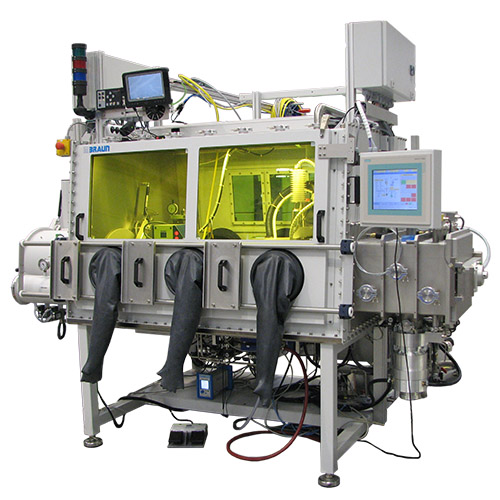

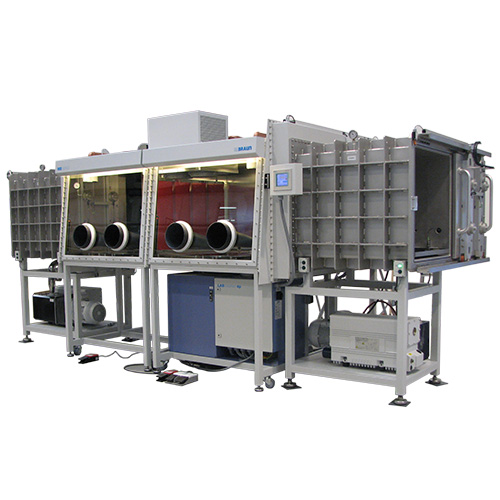

Integration and Modified Standard

Based on our standard we can propose you customization to fit perfectly to your needs. You need a bigger box, a longer antechamber, specific shelves, handling tools for heavy loads, we will find together with you the right solution.

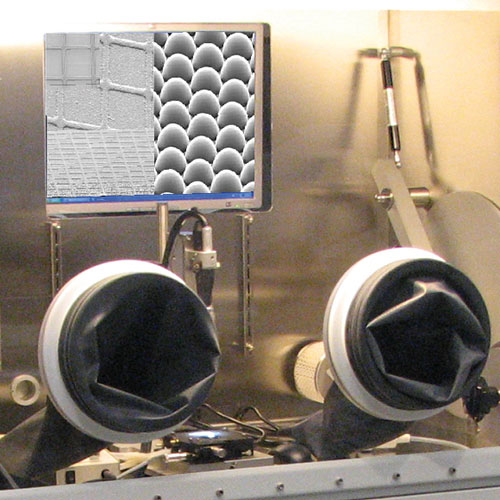

Your process needs a specific equipment in your glovebox, we can prepare the glovebox to integrate it easily, or we could integrate by ourselves your existing equipment. Then you will receive a ready to use specify system with the right equipment.

Standard Accessories/Options

Find here our options and accessories to fulfil your needs

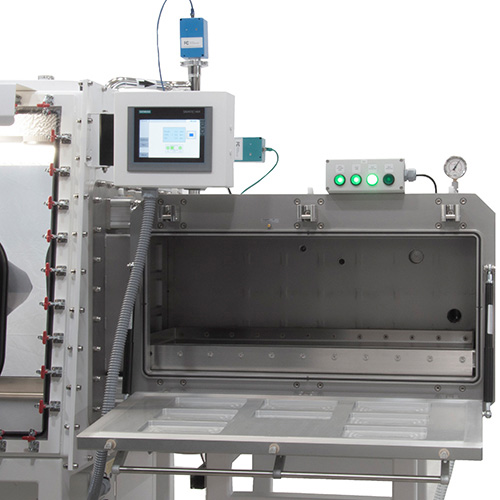

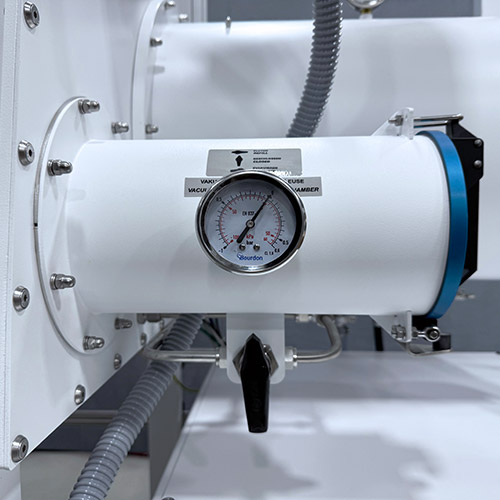

  • Antechambers
  • Analyzers
  • Feedhtroughs

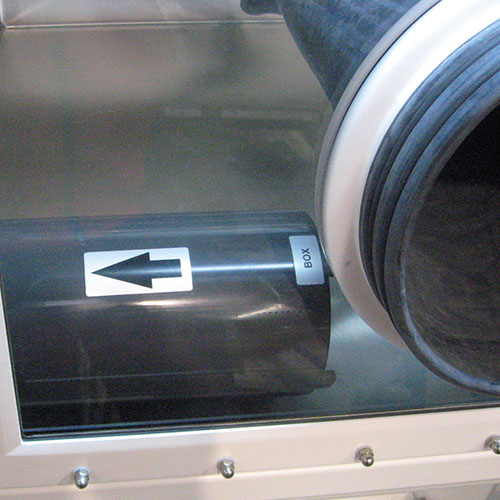

  • Filters
  • Vacuum Cleaners
